FTTH Fiber Cold Connection Tool Kit with Fiber Cleaver Visual Fault Locator Optical Power Meter P9939
FTTH Fiber Cold Connection Tool Kit with Fiber Cleaver Visual Fault Locator Optical Power Meter P9939
This is a multi-purpose toolkit, it can provide the tools necessary for Fiber Cold Connection and it will bring you a higher working efficiency.
Optical Power Meter Test Rang -70~+10 dBm; with FC and SC Adapter ;Test wave:850/980/1300/1310/1490/1550/16250nm
Visual Fault Locator with 2.5mm universal connector of the detector is compatibly designed for ST, SC, FC interferes both in circle and square shape of different fiber optic cables.Test for both single-mode and multi-mode cables.
Fiber Cleaver used for precision cutting of single core optical fiber,Applies to 250μm optical fiber or 900μm optical fiber,Provides approximately 36,000 cleaves,Light weight, small size, easy to operate.
Lifetime Friendly Customer Service,if have problem,pls contact us.
Specification:

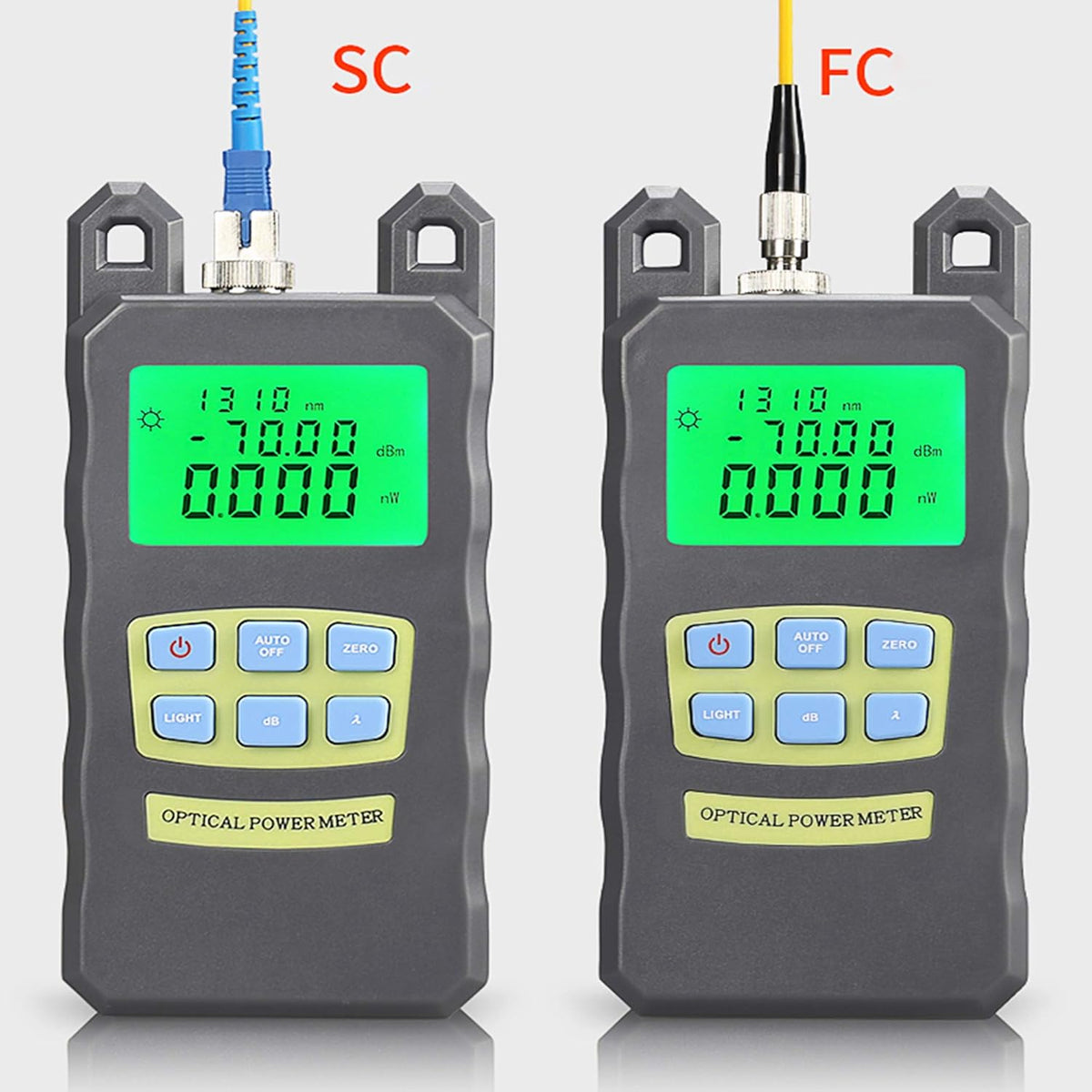

Optical power meter
Wavelength range: 800~1700
Test wave:850/980/1300/1310/1490/1550/16250nm
Probe type: InGaAs
Display resolution:mW:0.1% ,dBm:0.01dBm
Accuracy: ±0.05dB
Connector : FC and SC Adapter
Working temperature:-10~+10℃
Storage temperature:-25~+70℃
Size:180*83*28mm
Weight:330g

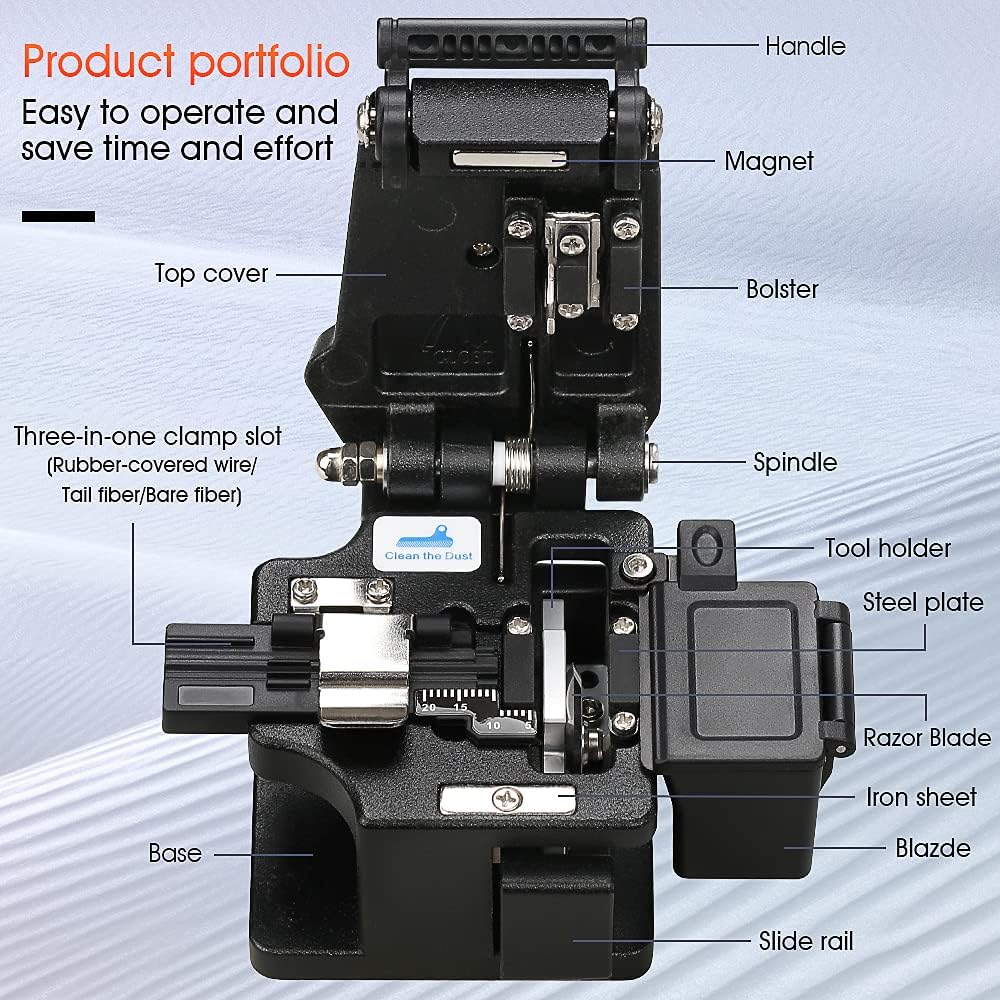

Fiber Optic Cleaver
250μm Coated or 900μm Buffer fiber
12 Position Rotatable and Replicable Blade
Cutting angle: 0.5 degree ;
Cutting length: 0.9mm fiber is 10-16mm;0.25mm fiber is 9-16mm;
Fibre package diameter: 125μm
Typical Blade Life: 36,000 Fiber Cleaves
Number of Steps for Cleave: 2
Blade Adjustments Rotational & Height
Visual Fault Locator
Shell Material:Aluminum Pen-type
Wavelength: 650nm 20nm
Emitter Type:FP-LD
Output Power:10mW
Optical Connector:2.5mm universal connector suitable for singlemode/multimode fiber
Operating Model:Both CW and Pulse available
Weight:150g
Kit include:
1.small fiber tool bag
2.Fiber power meter
3.Visual Fault Locator VFL-10KM
4.FC-6S fiber cleaver
5.Fiber Optic Stripper Clauss CFS-3
6.green fiber stripping tool
7.plastic bottle
8.Wire Cutter
9.Fiber length fixer
10.Dust free paper
Note:not including the AA batteries
